If you're worried about getting dust in your engine, this is the way to go. Our air boxes provide looks, good filtration, and easy installation. A must if you ride a lot of dirt roads.

All aluminum construction, with the exception of the perforated steel screen.
Built-in velocity stacks. O-rings in the mounts seal the air boxes to the carbs. Air filter element is made from UNI foam, which can be oil-coated or left dry. Attaches directly to carbs with three set screws per mount. Air filter and set screws included with all air boxes.

Since the vintage breadbox air filters are getting harder and harder to find, our box is a good alternative. A great choice for the custom chopper/bobber builder.

Surface Finishes:

1. Machine finish
2. Polished
3. Powder-coated (available in shiny black and matte black)



Honda CB750 Air Boxes

Available in two styles--Single Long Air Box or Dual Air Boxes (set of 2). Pricing is the same for either style. Dimensions will vary slightly according to model.

         Fits: SOHC 1969-1976 CB750 K & F Models
         SOHC 1977-1978 CB750, PD carbs

         Pricing:

         (Machine finish) $150.00
         (Polished finish) $195.00
         (Powder-coated) $190.00 (available in shiny black or matte black)


  IMG_0320

Machine finish
Single Long Air Box

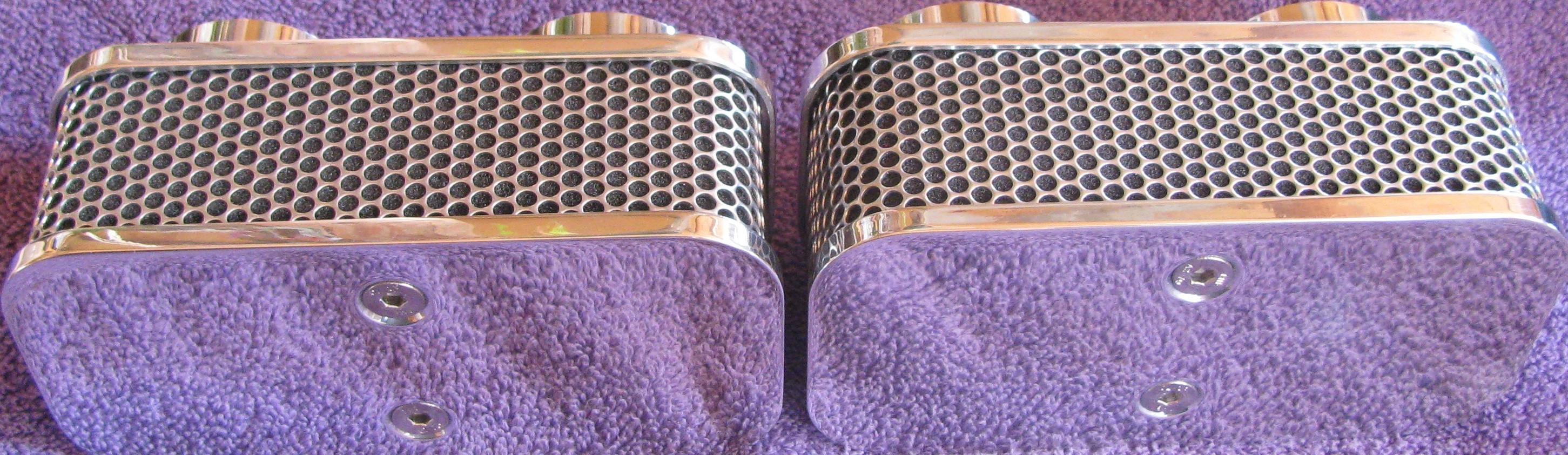

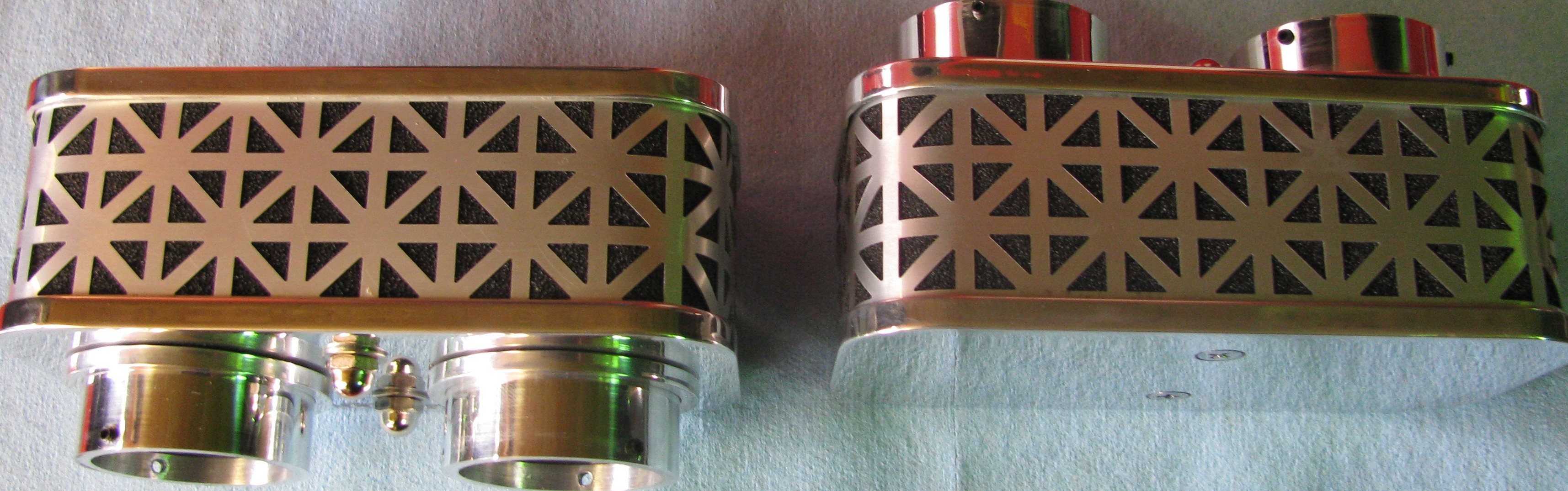

IMG_2267







Polished Dual Air Boxes (set of 2)

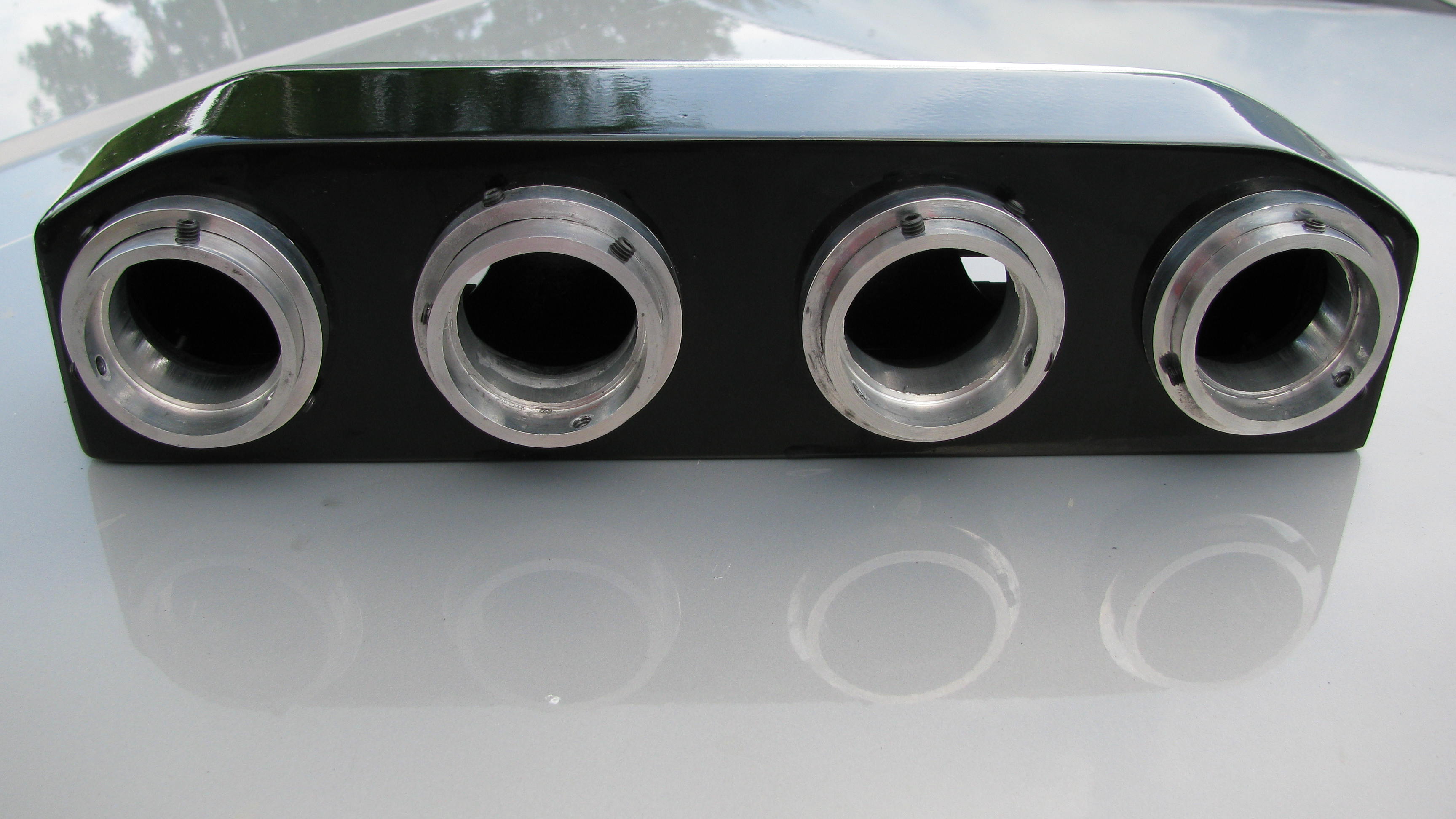

IMG_1491






         Fits: DOHC CB750, CV carbs


         Pricing:

         (Machine finish) $165.00
         (Polished finish) $200.00
         (Powder-coated) $195.00 (available in shiny black or matte black)

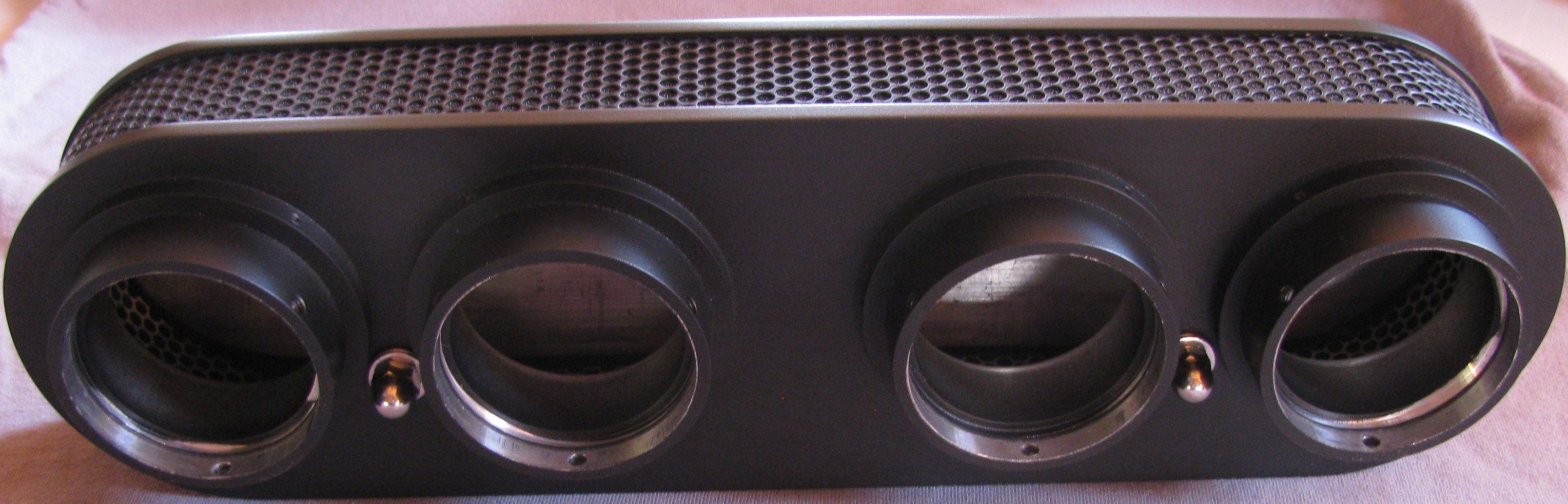

IMG_0215
Matte black powder-coated Single Long Air Box

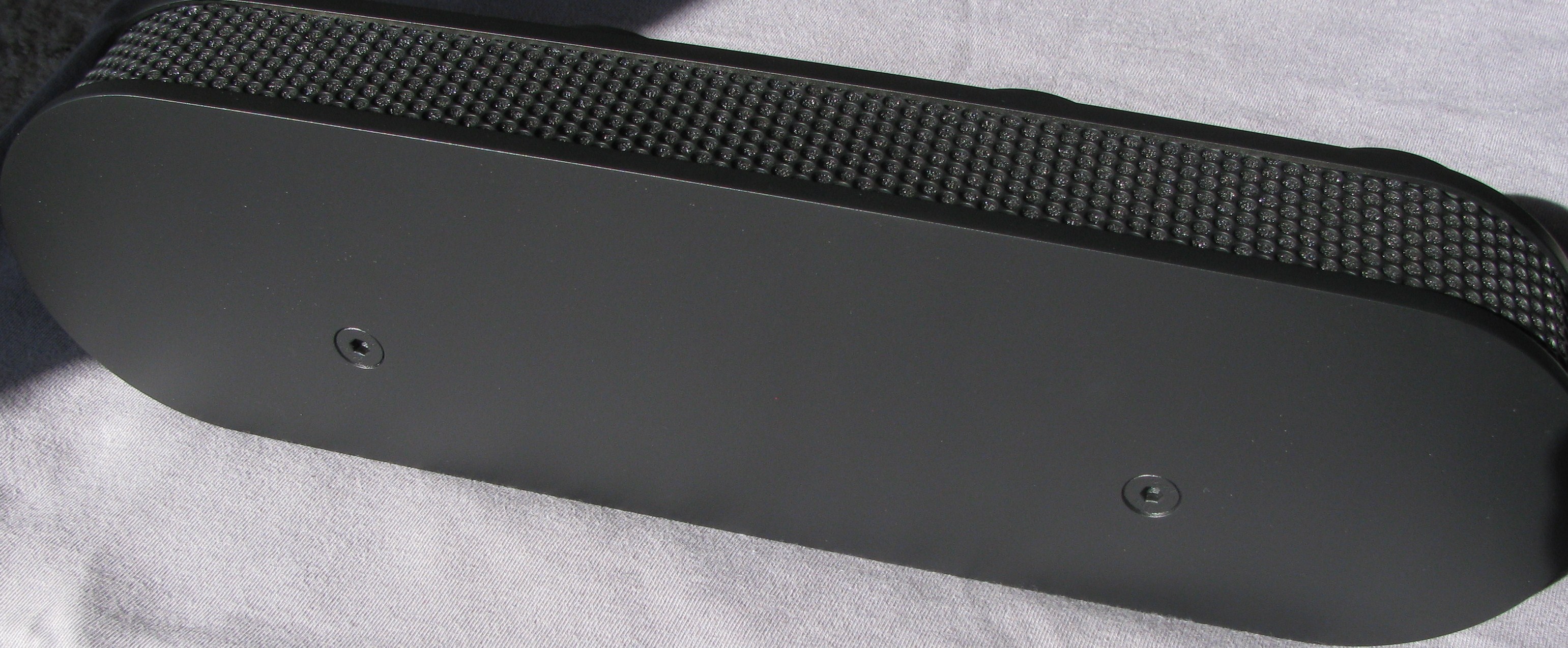

IMG_0214

Matte black powder-coated Single Long Air Box, front view

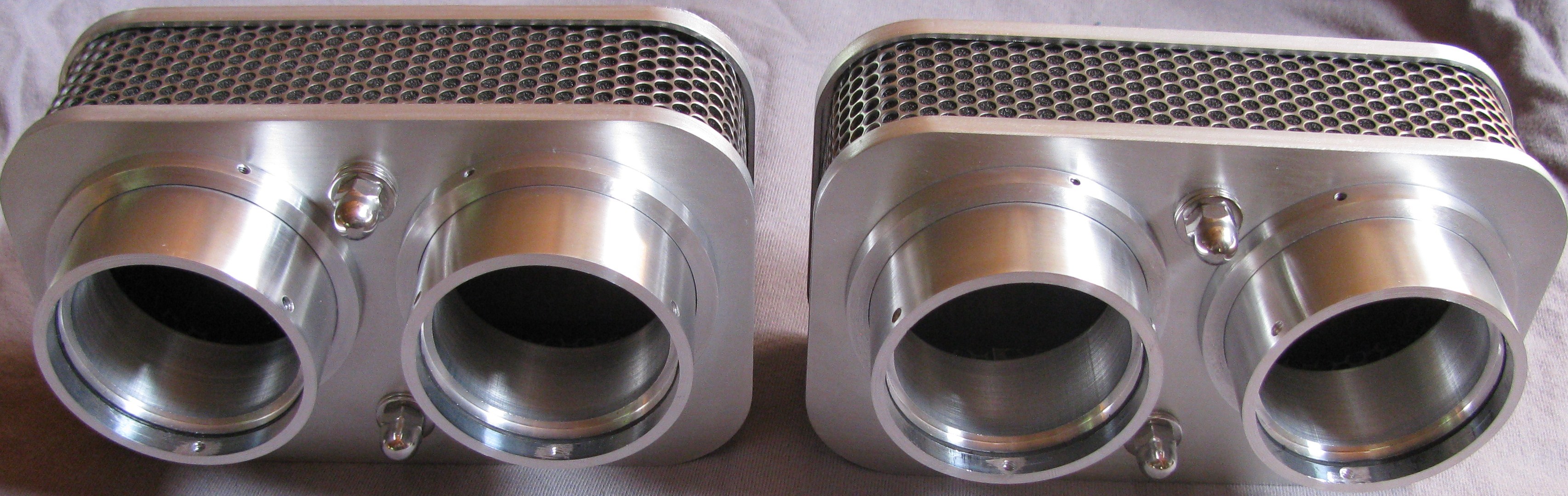

DOHC_Dual_Boxes_036

Machine finish Dual Air Boxes (set of 2)





Honda CB750 Nighthawk Dual Air Boxes

Available in one style--set of two Dual Air Boxes. Machined from solid billet 6061 aluminum; built-in velocity stacks; perforated steel screens; Unifoam air filters; o-rings in mounts; our custom-made mounting bracket replaces your stock carb bracket, using your existing screws to mount. One set screw per mount also included for a secure fit.

Note: These boxes have been designed to fit the Nighthawk frame's down-tube and tight frame clearances. Our DOHC air boxes listed above are NOT compatible with the Nighthawk bikes.

         Fits: 1991-2003 Honda CB750 Nighthawk, CV carbs

         Pricing:

         (Machine finish only) $275.00

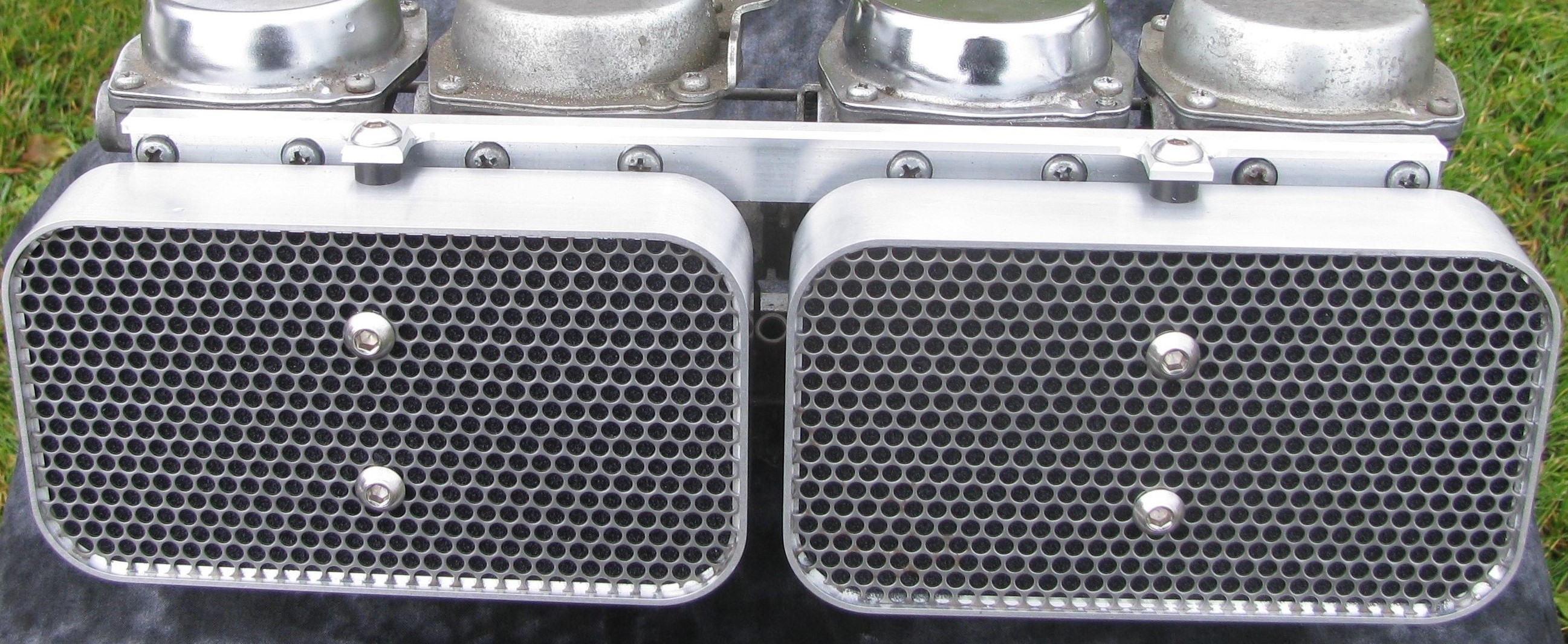

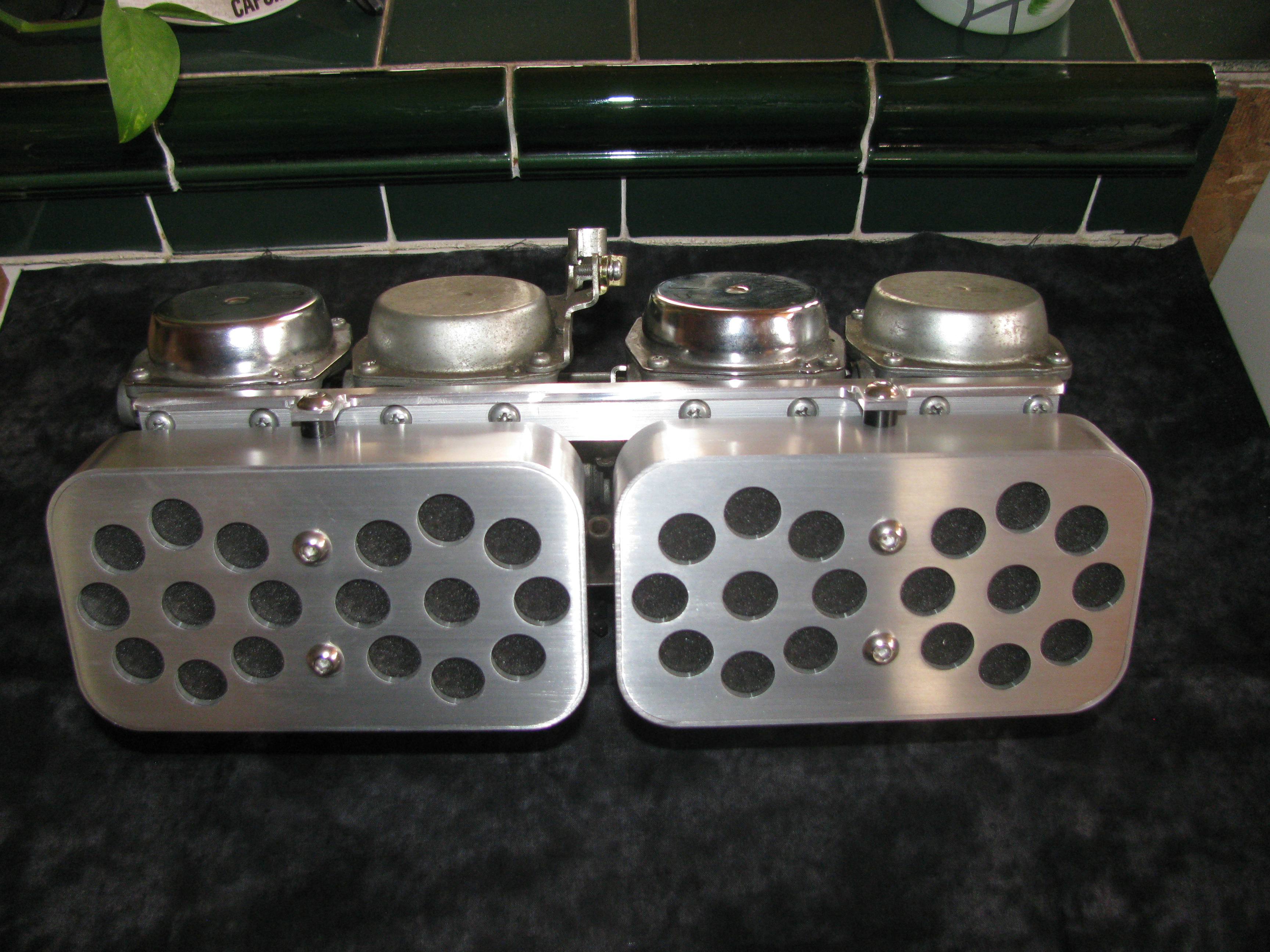

nighthawkairboxes007sized





Front view

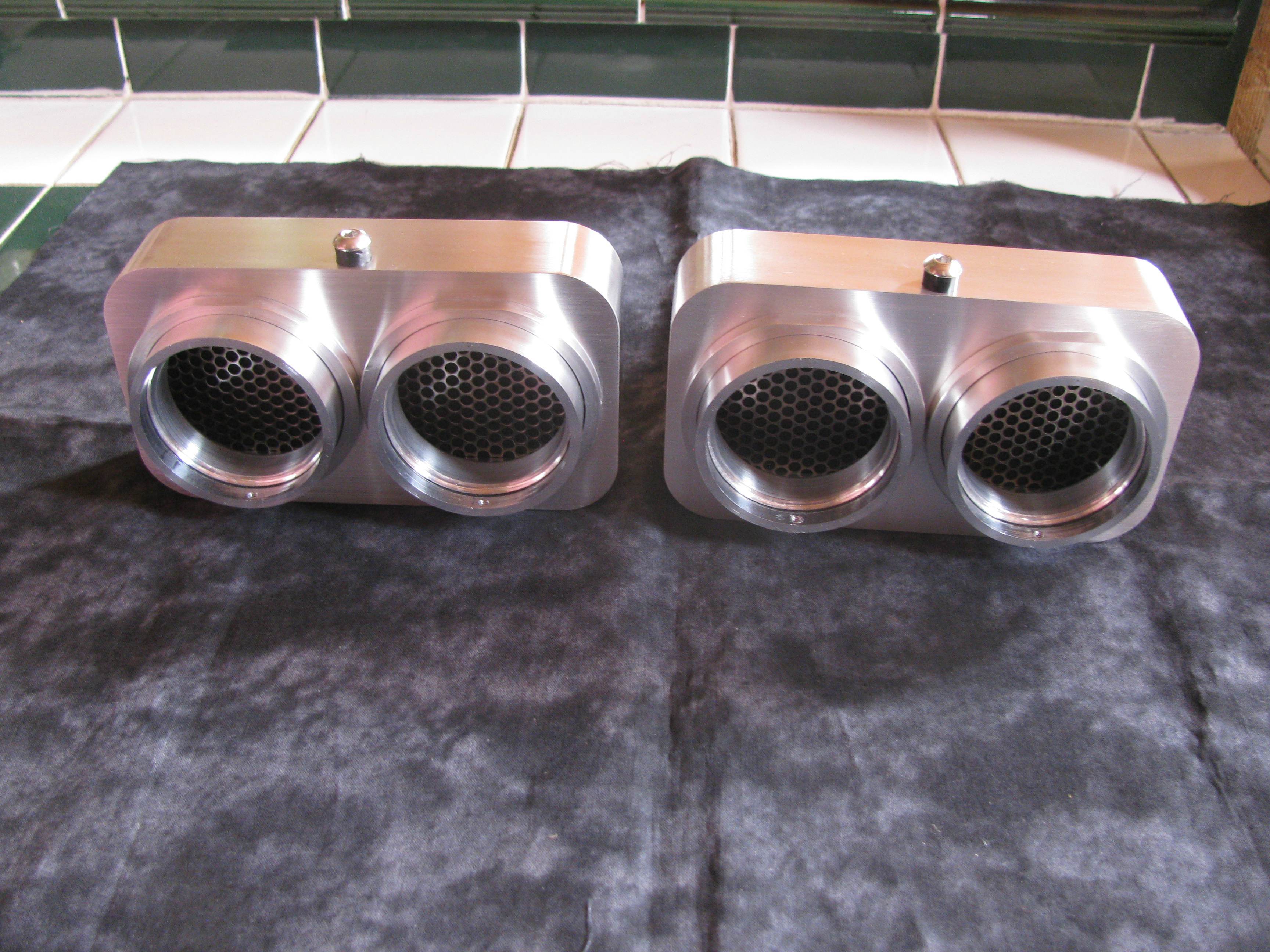

nighthawkairbox006sized




Carb mount view

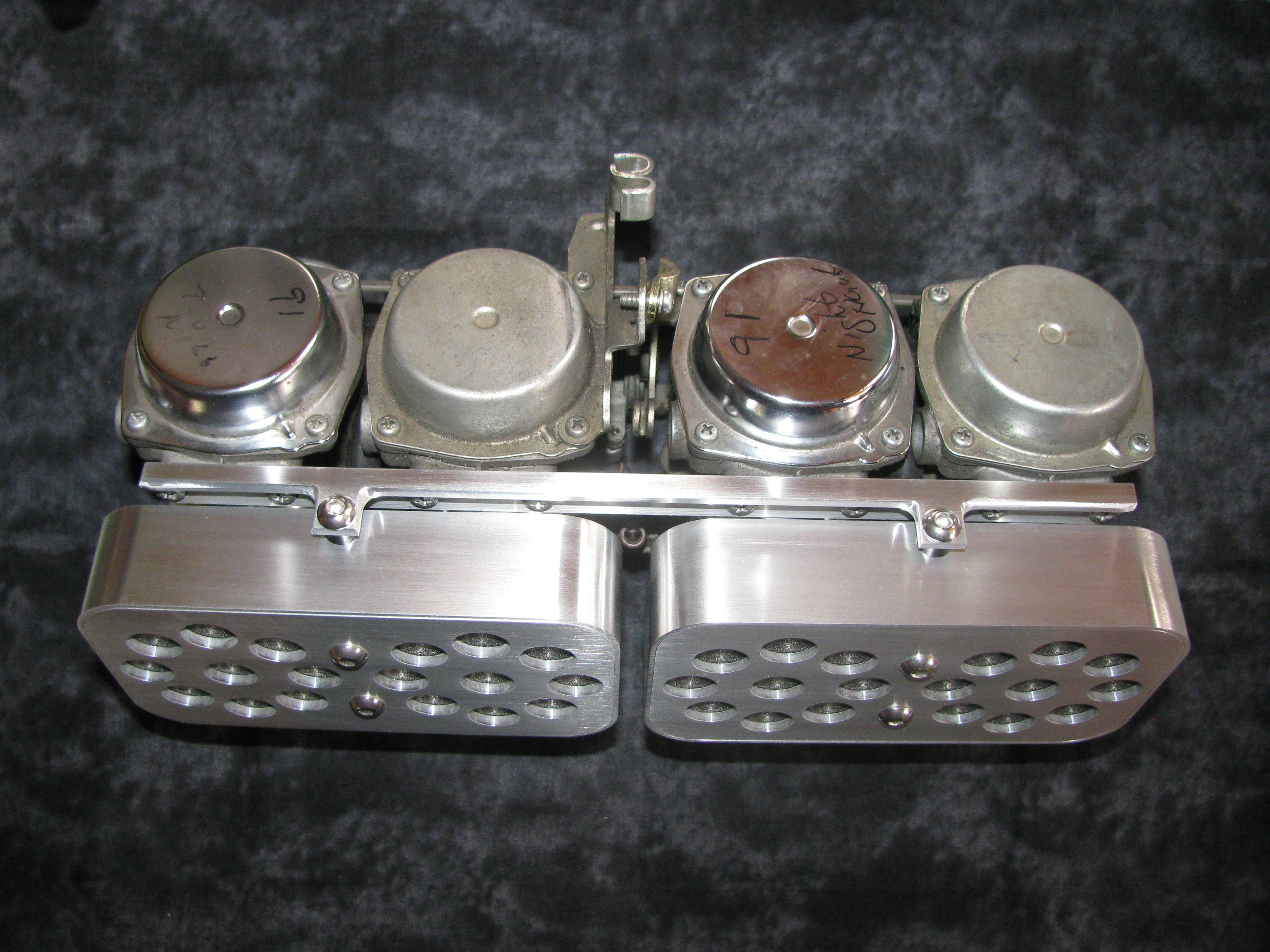

nighthawkairboxes008sized



Top view (including custom mounting bracket)

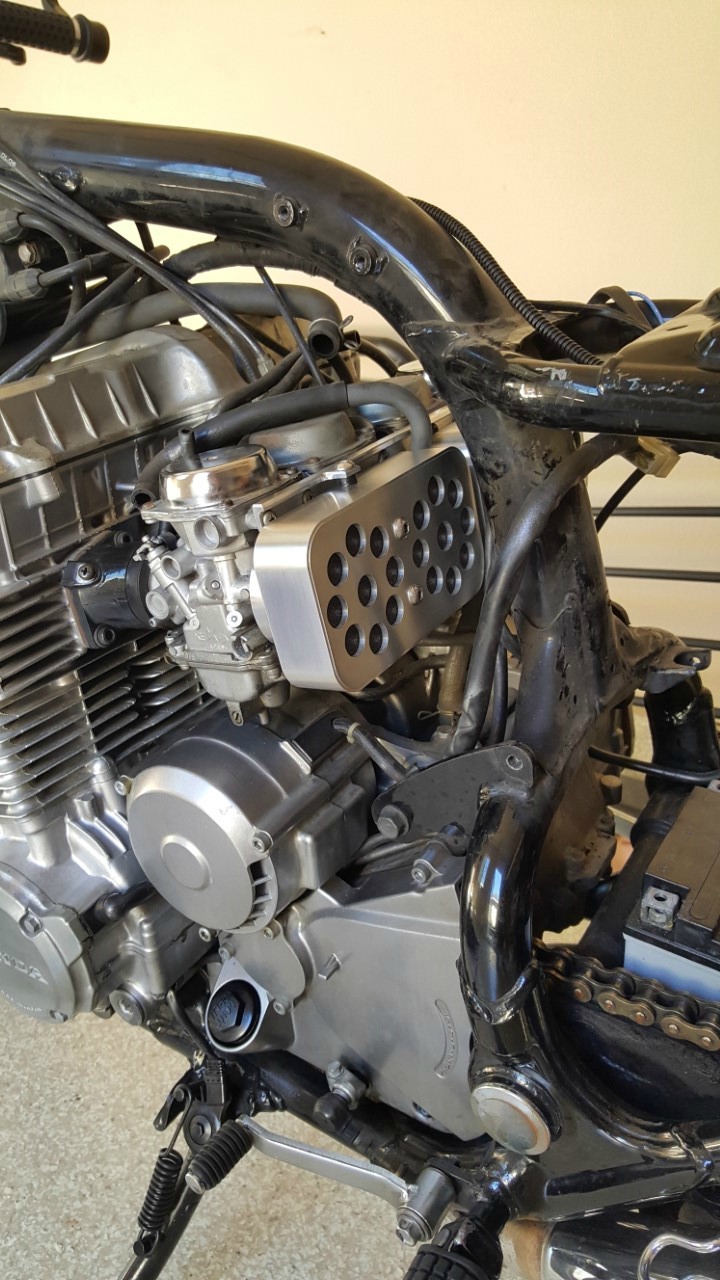

tomnighthawk1sized







Nighthawk dual air boxes
mounted on a bike -- visual of clearances













Honda CB500F/CB550F Air Boxes

Available in two styles--Single Long Air Box or Dual Air Boxes (set of 2). Pricing is the same for either style. Dimensions will vary slightly according to model.

         Fits: Early Model CB500 Four
         Early Model CB550 Four
         1977-78 CB550 Four, PD carbs

         Pricing:

         (Machine finish) $150.00
         (Polished finish) $195.00
         (Powder-coated) $190.00 (available in shiny black or matte black)

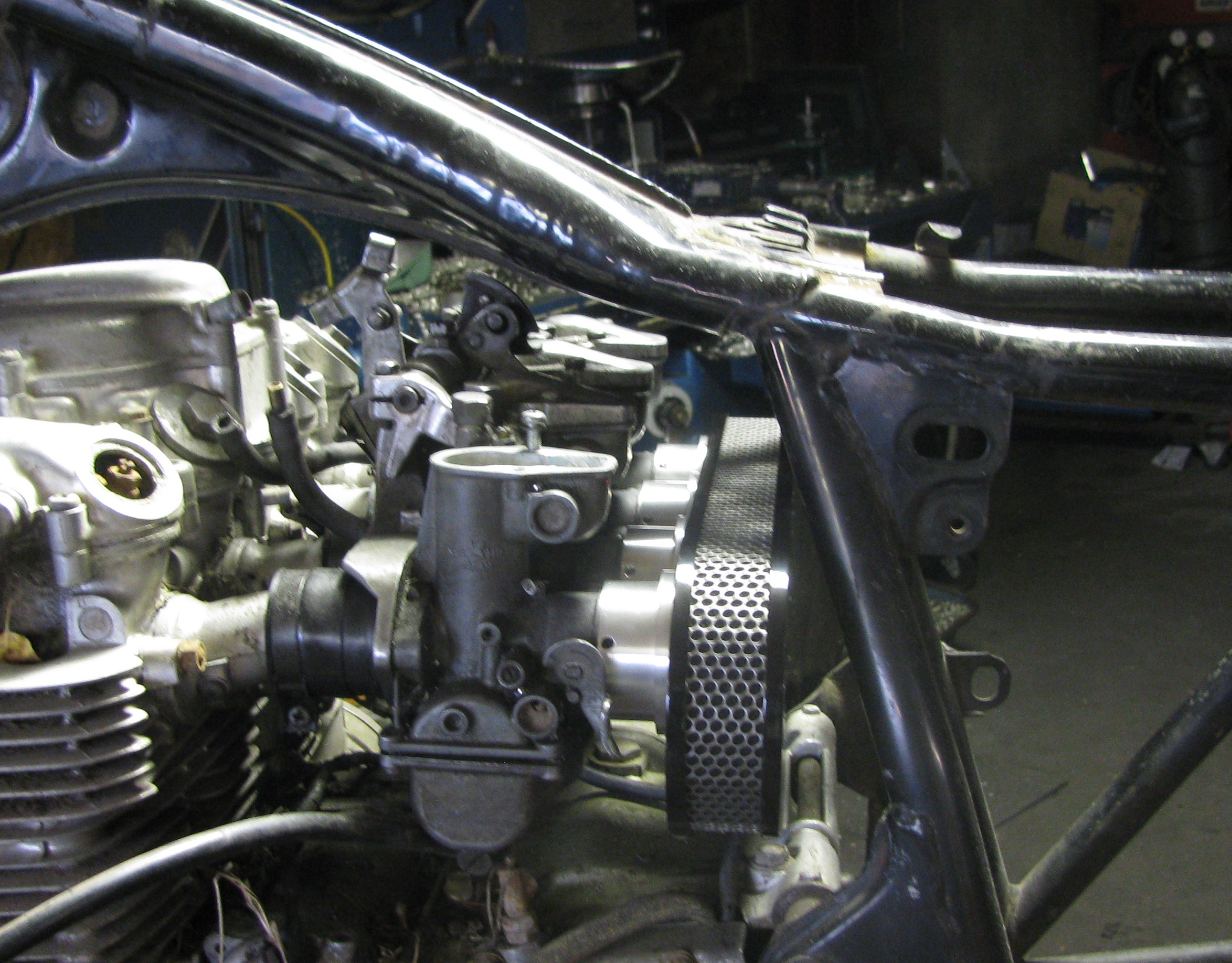

IMG_0007




Shiny black powder-coat with machine finish screen Single Long Air Box (mounted on stock CB500-550 frame), left view

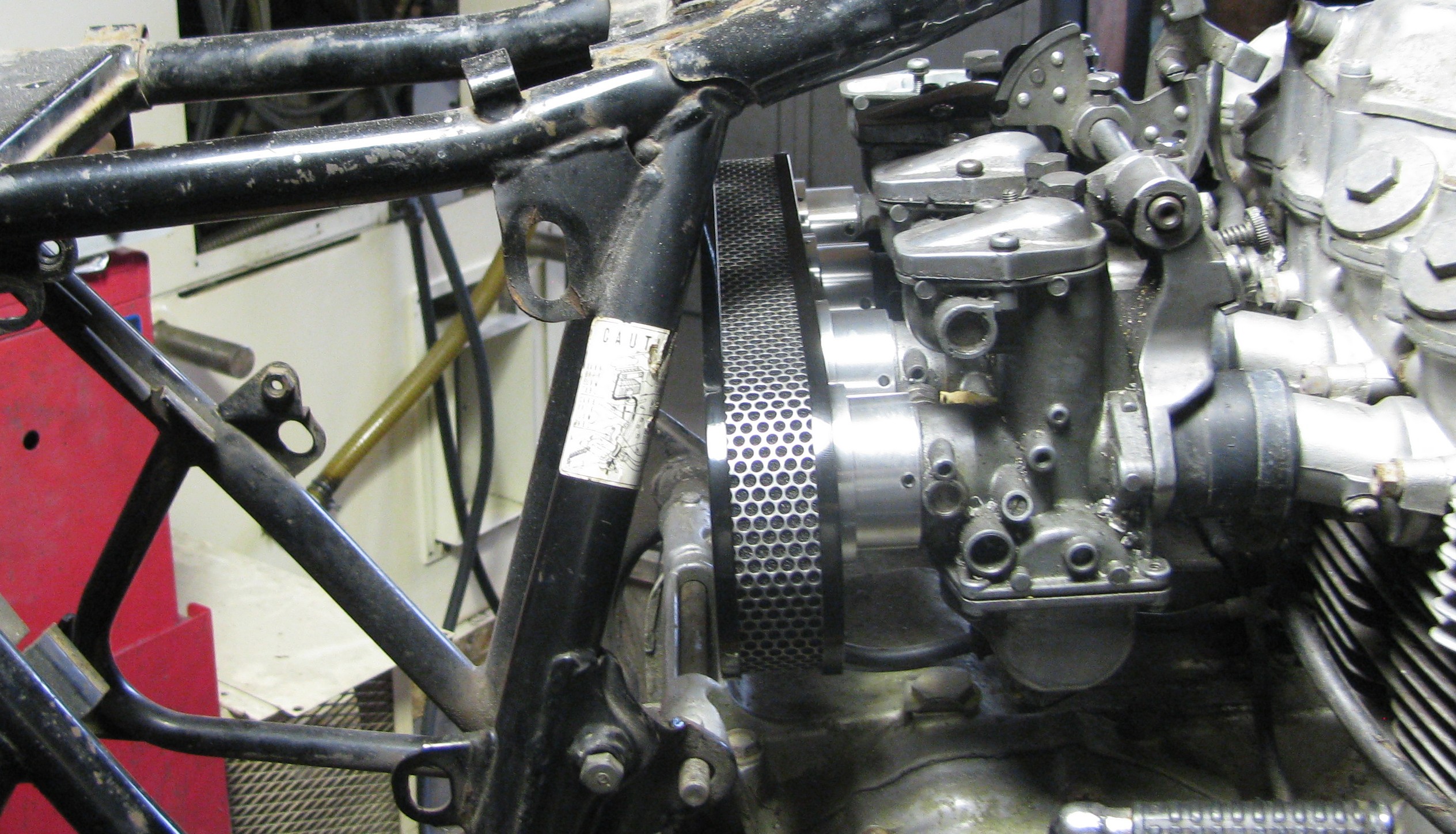

IMG_0008
Shiny black powder-coat with machine finish screen Single Long Air Box (mounted on stock CB500-550 frame), right view

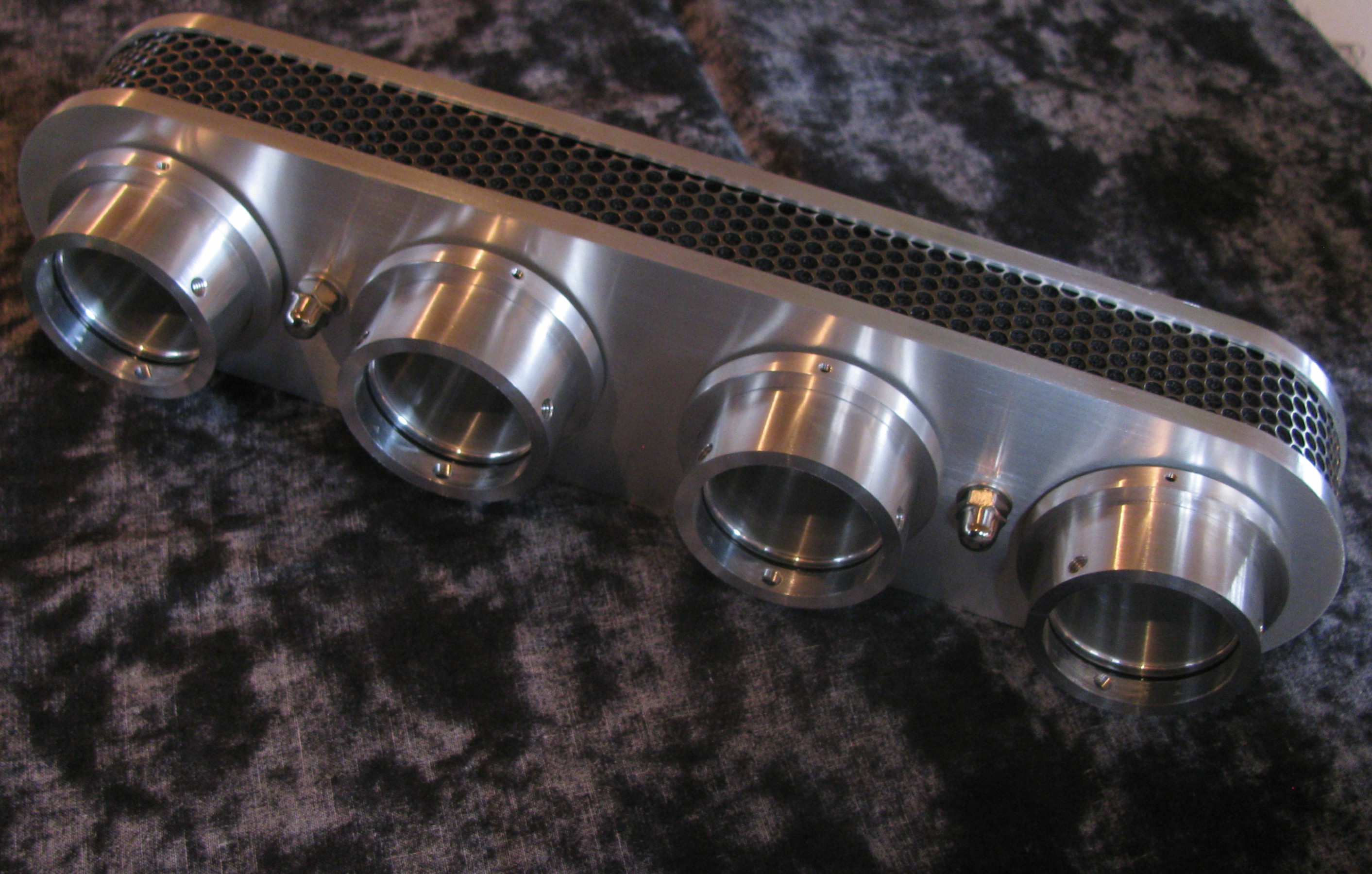

024_resized



Machine finish Single Long Air Box

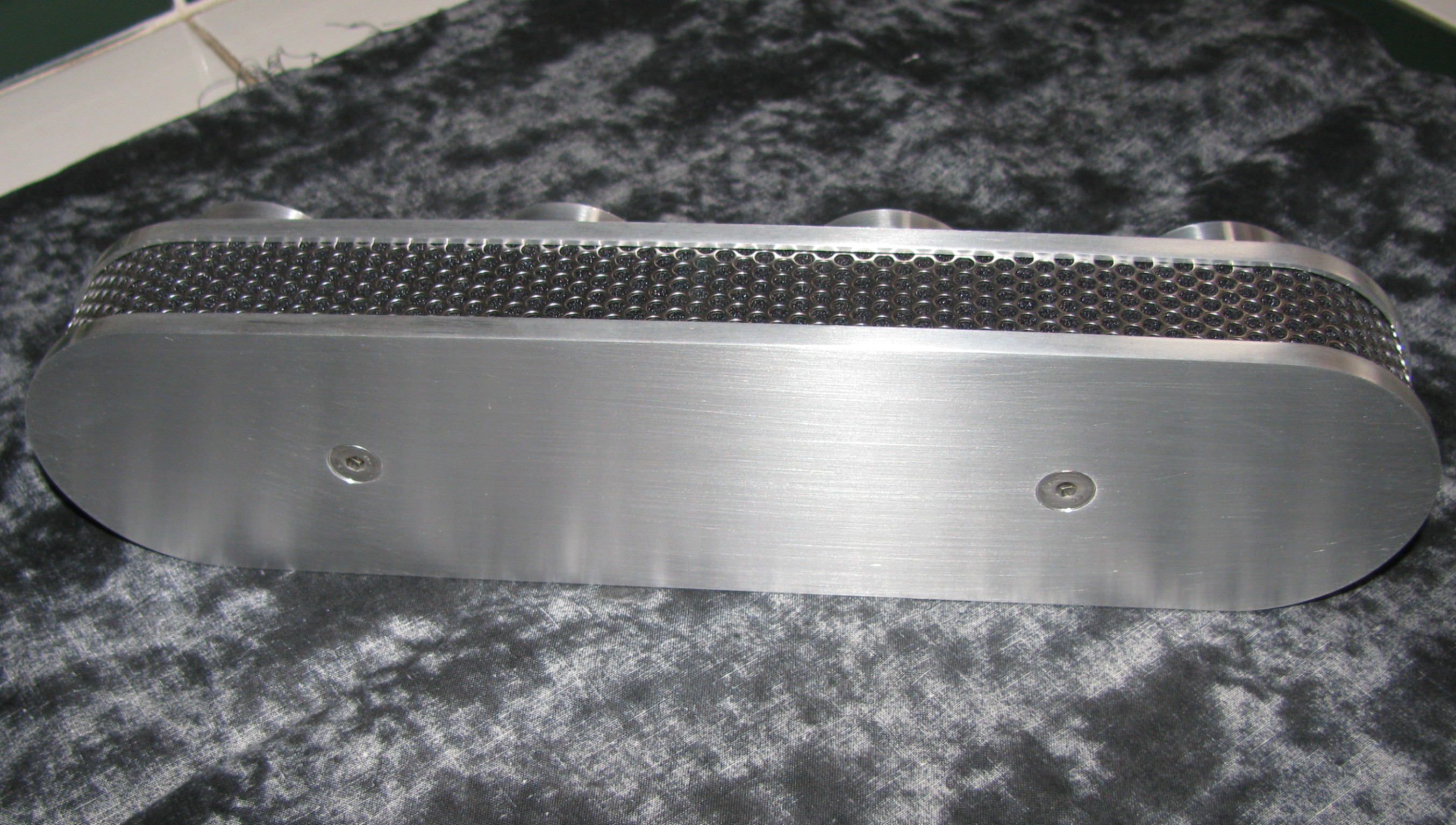

023_resized


Machine finish Single Long Air Box








Honda CB350F-400F
Air Boxes


Available only as a Single Long Air Box.

         Pricing:

         (Machine finish) $150.00
         (Polished finish) $195.00
         (Powder-coated) $190.00 (available in shiny black or matte black)

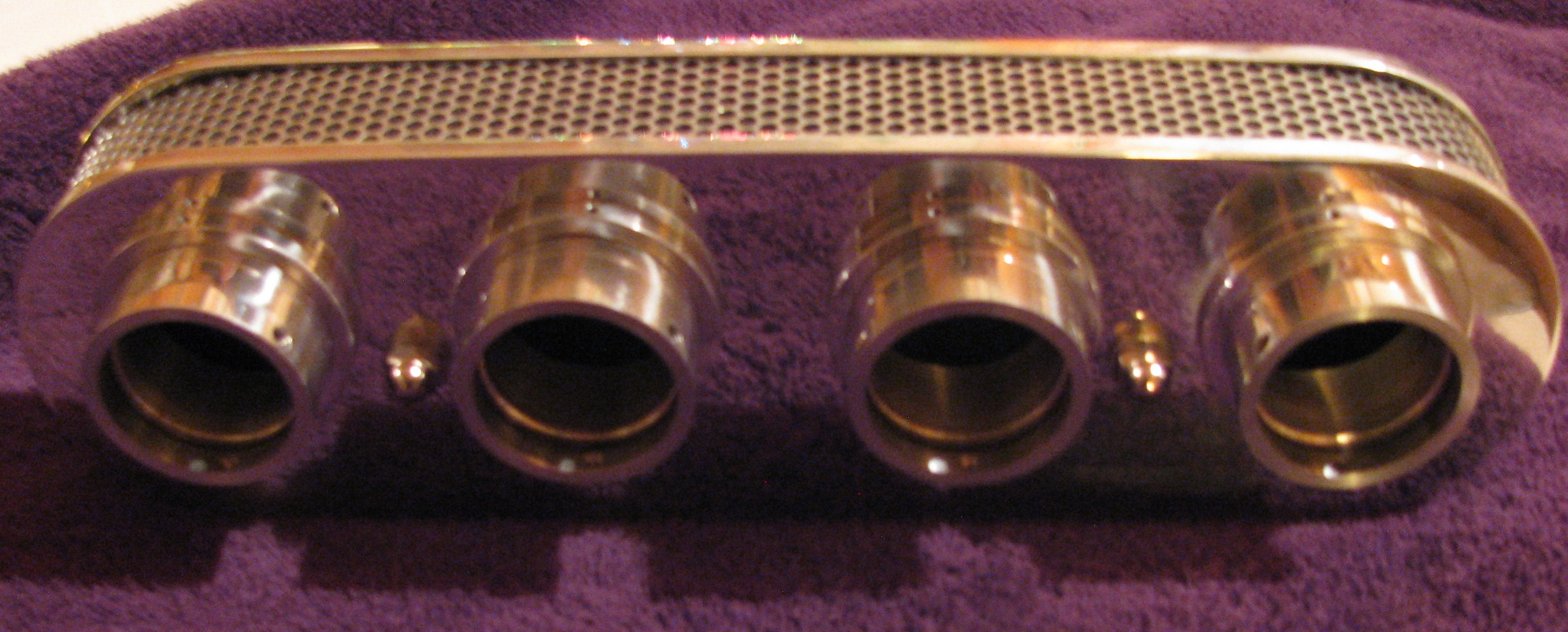

IMG_0073



 Polished Single
 Long Air Box






Honda CB350 Twin, CB450 Twin,

CB500 Twin Air Boxes

Available only in a set of two Dual Round Air Boxes. Note: Small bike modifications will be necessary for installation. Choke lever needs to be bent 90 degrees to clear back of one Air Box. On some bikes, you may need to remove small tab on bottom of battery box or just slide the battery box back approximately 1/4".

         Pricing:

         (Machine finish) $110.00
         (Polished finish) $135.00
         (Powder-coated) $130.00 (available in shiny black or matte black)

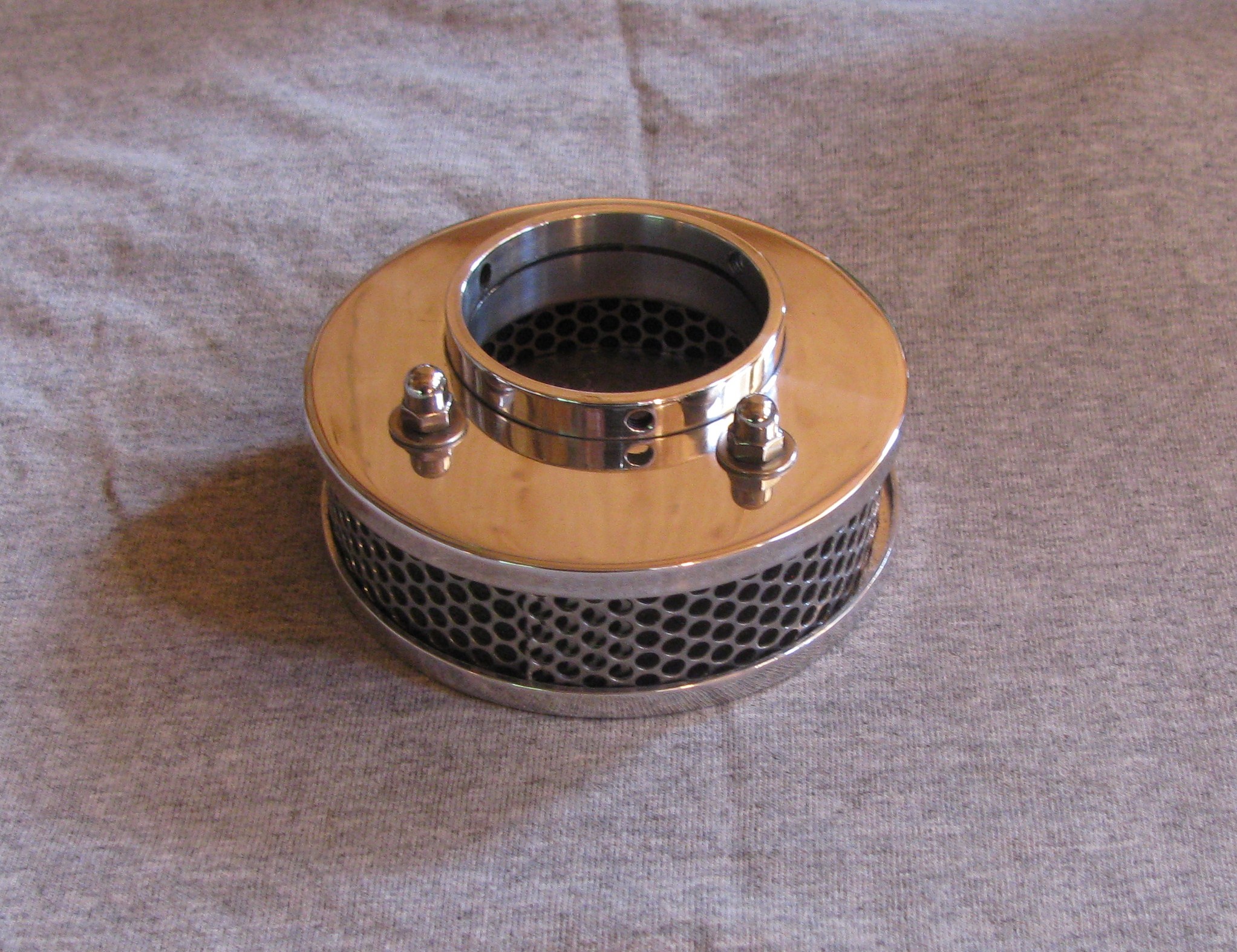

IMG_0019


Polished Dual Round Air Box
(one of a set of 2)

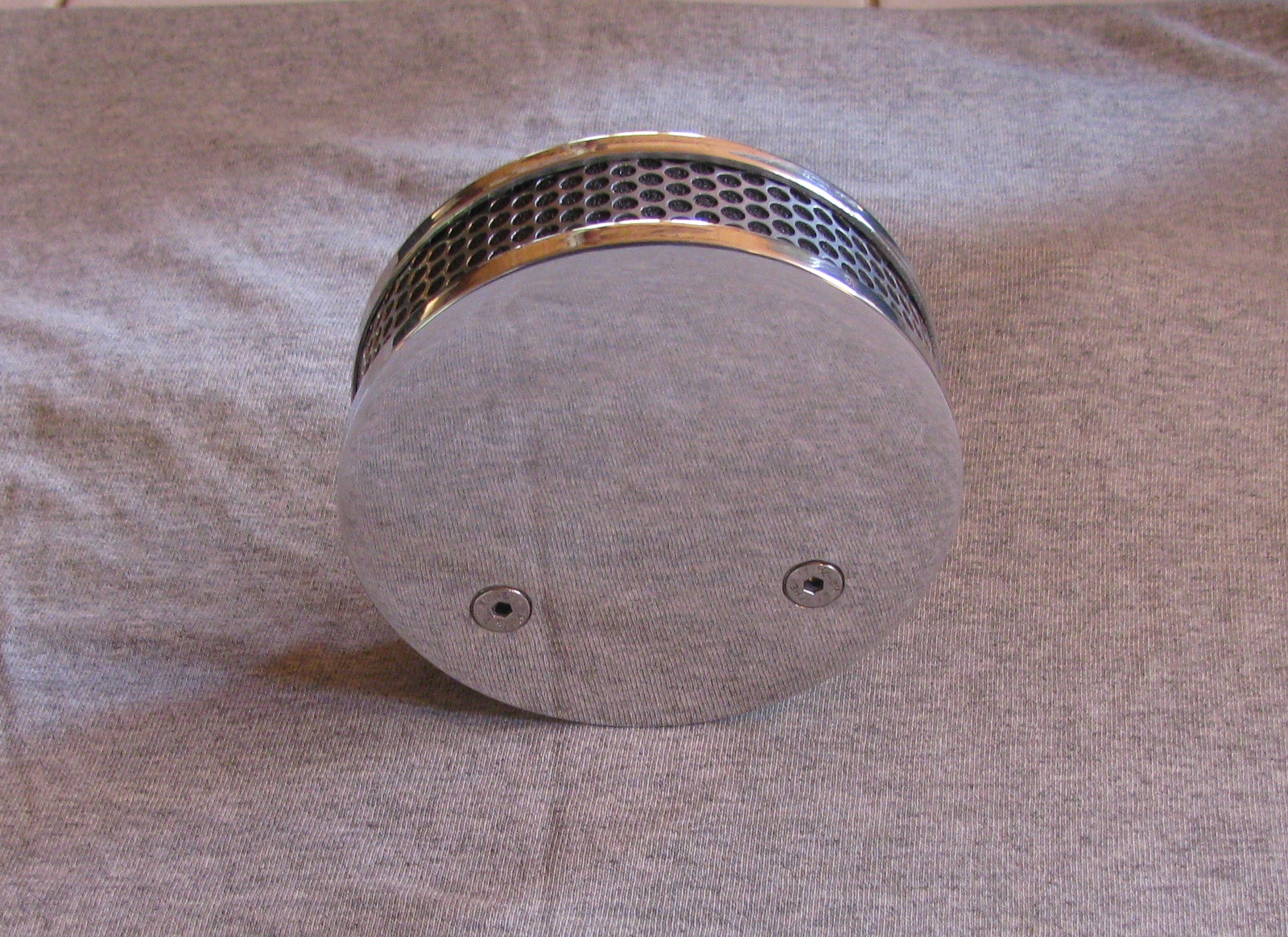

IMG_0023



Polished Dual Round Air Box (one of a set of 2)
